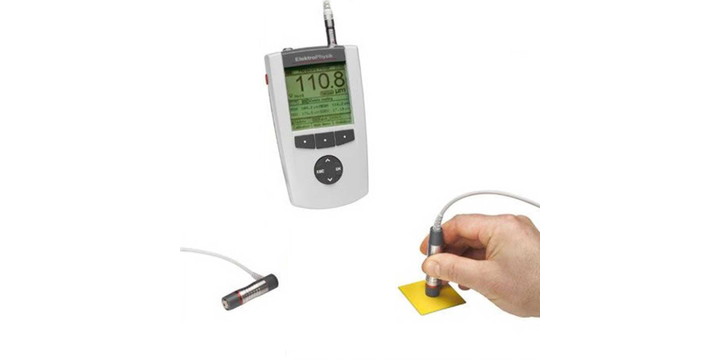

ELECTROPHISIC Minitest 7400 No Probe 80-170-0000

Benefits

· Precision in coating thickness measurement of up to 100 mm /4 inches

· Increased accuracy and reproducibility by sensor-integrated digital signal processing (SIDSP)

· Universal probes with automati c substrate detection for quick measurements on steel and non ferrous metals

· Wear resistant probes with practically unlimited service life

· Optimal temperature compensation

· High precision characteristic curves with up to 50 data points in the factory calibration

· Storage for up to 100000 values

· User guidan ce in 4 languages, others under preparation

Features

· For non-destructive measurements on all metal substrates

· Awide range of interchangeable sensors is available to meet the requirements of your application

· Convenient graphics display with numerous display options

· Intuitive menu control, enhanced da ta management with configuration assistant

· PC software for simplified configuration evaluation and set-up of data reports

· Wear-resistant sensors for numero us measuring tasks up to 35 mm thickness

· SI DSP technology for accurate and reproducible readings

Specifications

· Type : Minitest

· Coating Thickness Measurement gauge with different application probes selection

· High-precision coating thickness gauge for non-destructive measurements on all metal substrates

· Max. number of batches : 500

· Max. number of storable readings : approx.250,000 readings in total

· Calibration : up to 5 po ints (user adjustable)

· Monitoring of limits : visual and audible alarm

· Measuring units : Micrometer, MM, CM, mils, INC, thou

· Ope rating temperature : 0DegC - 60DegC

· v PC Interface : Ir DA 1.0, USB an d RS232 with optional adapter

· Power supply : 4 x AA (LR06) batteries

· Standards : DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840,AS3894; SS 1841 60, SSPC-P A 2, IMO-PSPC, ASTM B 244, B 499, D7091,E376

· Display Dimension : 160 x 160 pixel LCD withbacklight

· Unit Dimensions : 153 x 89 x 32 MM

· < p align="justify"> Weight : 310 Gr (incl. batteries)

· Ac curacy : +/- 0.75 %

· Measuring Method : Non Dest ructive Measurement

· Measuring Range : 0-15 MM

· Resolution : 5 Micrometer

Technical Spec

• Netto Weight : 0.310 KG
• Unit Demension : 150 X 82 X 35 MM
• Height Demension : 35.000
• Length Demension : 150.000
• Width Demension : 82.000
• Type : Mini Test
• Dimension uom : 150.000
• Resolution : 5 Micrometer
