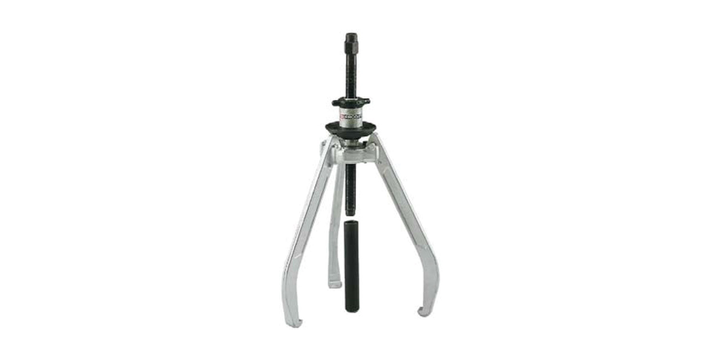

Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
The scr ew is supplied with an extension: U.320-14.
Adaptable puller accessory: hydraulic jack UWG.320. Using the jack requires the screw UWG.320-H01 and hydraulic pump UWP.10M. Mounting with 3 legs only wi th the hydraulic jack.
Specifications
Capacity (Mini - Maxi.): 100-360 mm
Pull Maximum: 400 mm
Force: 200 kN
Ton: 20 Ton
Legs: U.320-13A
Screw size: U.320-01
Hex size: 36 mm
Technical Spec
Netto Weight 27.600 KG
Unit Dimension 250 X 250 X 740 MM
Height Dimension 29.000
Length Dimension 76.000
Width Dimension 33.000
Material Stainless Steel
Type Outside Puller
Lead Time 75
Dimension uom 76.000
Rp 39.790.000
(exc. PPN)
Rp 44.166.900
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
