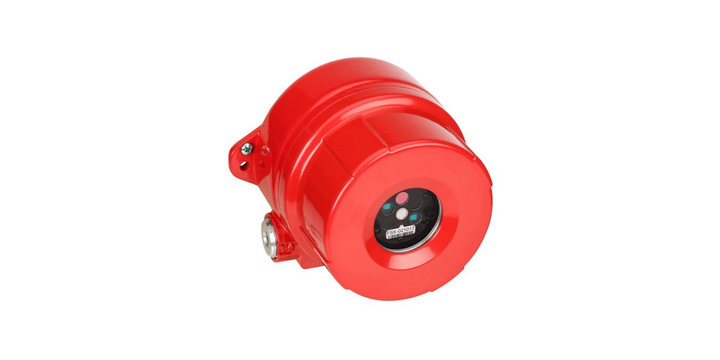

FS20X Flame Detector
Merek:
HONEYWELL
Model:
FS20X
Lembar Data Teknis
Deskripsi Produk

FS20X Flame Detector :

Sophisticated software algorithms and dual microprocessors ensure that the FS24X has the highest fire detection performance combined with optimal false alarm rejection.

Product Overview:

The FS24X is the latest generation high technology Multi-Spectrum Triple IR (IR/IR/IR/Visible) Flame Detector, which is part of our FSX family of advanced technology Electro-Optical fire detectors. Using our patented* WideBand IR™, WideBand 4.3 micron IR™, and Visible detection technology, the FS24X is a quantum leap in flame detection. Sophisticated software algorithms and dual microprocessors ensure that the FS24X has the highest fire detection performance combined with optimal false alarm rejection.

The WideBand IR™ Infrared technology using high-speed solid-state Quantum sensors allows detection of all types of fires, hydrocarbon and non-hydrocarbon, in all weather conditions. If the detector’s signal is blocked by ordinary window glass, the patented WideBand IR sensors will still alarm to the fire but at a reduced sensitivity and slower response time.

Dual microprocessors provide a high level of fail-safe operation combined with fast and reliable performance. The Master Microprocessor performs high-speed digital sampling and signal-processing calculations: while the slave microprocessor handles various sensor data, performs communications, self-diagnostics and provides interface versatility: and additional memory for storing Event Log and FirePic™ data.

The FSX family of detectors feature our patented* FirePic data storage and information retrieval facility. FirePic™ records pre-fire data, which can be recovered from the Detector’s non-volatile flash memory for post fire analysis and postulation of the fire cause. Additionally, unique Real-Time Graphing (RTG™) allows viewing of the data that the Detector actually sees. A combination of outputs makes the FS24X a truly versatile detector for today’s demanding industrial requirements.

The FS24X Flame Detector has a detection range greater than 200 feet (Very High Sensitivity setting) for the detection of a one square-foot Heptane reference fire and has a cone of vision far greater in volumetric coverage than any other Multi-Spectrum IR Detector. This means fewer detectors can be used as compared to other manufacturers’ detectors.

Additional Features and Benefits:

Features:

  • Patented* WideBand IR™ Technology
  • Patented* Electronic Frequency Analysis™
  • Visible Sensor for optimum false alarm rejection
  • Selectable detection sensitivities
  • Field-of-View: 110° full 100% cone-of-vision (90° full 100% cone-of-vision model also available)
  • Dual microprocessors for reliable performance
  • Real-time clock for accurate time dating of events
  • FirePic™ — pre-fire event data storage
  • Event log with date and time stamp
  • RS-485 ModBus communication
  • Non-Isolated 4-20 mA Analog output (sink or source)
  • Alarm, Fault and Fire Verification relays
  • Automatic optical path and electronic self-test
  • Widest operating temperature range
  • Patented* Electronics Module for components protection with easy plug-in terminations and field installation
  • Two ¾” NPT OR 25mm conduit entries
  • Low power consumption
  • High RFI and EMI immunity
  • FM, ATEX, CE mark approvals
  • Meets SIL 2 requirements

Benefits:

  • Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
  • User selectable outputs
  • Optimal false alarm rejection for all environmental conditions
  • Minimal maintenance for trouble-free operation
  • PC software and Interface Module (FSIM) for fault diagnostics, real-time graphics (RTGs), and downloading of FirePics™ and event log
  • Suitable for a wide variety of applications
  • Easy electronics module replacement
  • Test lamps for manual testing.

Features & Benefits:

  • Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
  • User selection outputs
  • Optimal false alarm rejection

Quick Specs:

  • Sensitivity: Very high, high, medium and low - switch selectable
  • Operating voltage: 24 VDC nominal (18-32 VDC) - regulated
  • Humidity range: 5 to 98% relative humidity, non-condensing
Rp 90.000.000
(exc. PPN)
Rp 99.900.000
(inc. PPN)
