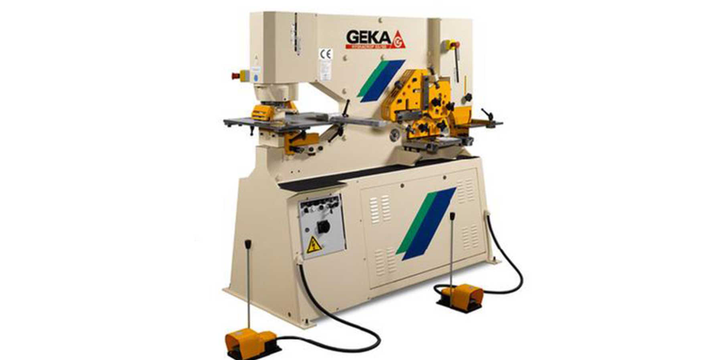

GEKA Hydraulic Iron Worker Hydracrop 55/110S

Benefits

• Machine Frame : Built with a Mono Block ideal on Top of the line CNC Machining and Turning centers using state of the art CADCAM software. All machining is done by Maquinaria GEKA S.A. with quality European Steel.
• Hydraulic System : Built using quality components including vickers directional valve and ABB motors
• Eletrical System : Built using quality electrical components consisting of Telemecanique, Omron
• Heat Treatment : All heat treatment of blades and other accessories are done in house
• Proven quality , design and craftsmanship
• Produced & manufactured in the European Union. Conversely other manufature GEKA is the only ironworker fully produc ed in the UE
• ISO 9001 and OHSAS certifications besides 90 years of experience and a continuous benchmarking policy

Features

• Precision punching table with milimeter stops
• Precision notching table with milimeter stops
• Universal electric bar stop
• Machine light for improved vision at work station
• 10 sets of round punches and dies
• Extended punching throat for large area flat plate working
• Safety guard
• Machine driven by 2 cylinders
• 5 working stations prepared with tooling for the cutting of angles, flats, round and square
• Rapid tool change

Specifications

• Shears of flatbar: 350x10mm
• Length of blade: 305 mm
• Shear for section iron L at 90deg.: 120x120x10mm
• L at 45deg.: 70x70x7mm
• Shearing power:1100kN
• Round bar: 40mm
• Square bar: 40mm
• Notching plate thickness: 10mm
• Notching angle of: 100mm
• Punching power: 550kN
• Max capacity: dia.40 x 20 mm
• Throat: 250mm
• Motor: 5kW
• Net weight: 1390 kg
• Packaging dimension: 167x116x200cm
