Gut Gap Bed Lathe C6266X2000
Gut Gap Bed Lathe C6266X2000
Merek:
GUT
Model:
C6266X2000
Deskripsi Produk

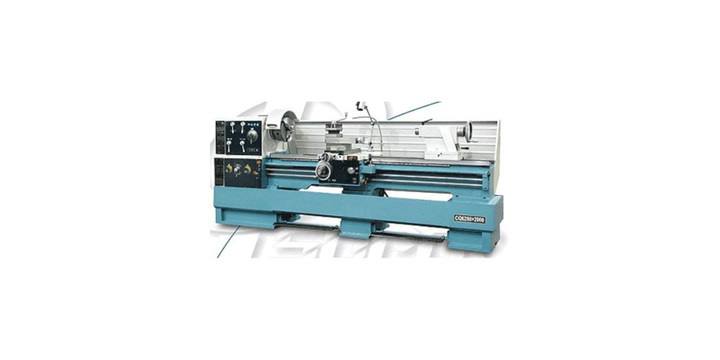

GUT Gap Bed Lathe C6266X2000

GAP BED LATHE C6266X2000

Benefits

  • Multinational manufacturer leading machine tools in China.
  • Machine design with quality, reliability, User-friendly and safety.
  • Stable quality products for Industrial machine grade

Features

  • Hypercoustic quenched and accurate grinded bedway and dovetail of saddle
  • One piece cast iron base for well rigidity
  • Hypercoustic quenched and accurate grinded main drive gear
  • Forced lubrication of headstock by oil pump
  • Clutch assembled in apron for avoiding overload
  • automatic feed
  • Convenient to cut thread
  • Three jaw chuck
  • Four jaw chuck
  • Four station tool post
  • Coolant system
  • Worklamp
  • Full length splash guard
  • Face plate
  • Steady rest
  • Follow rest
  • Reduce sleeve
  • Dead centers
  • Foot brake pedal

Specifications

  • Swing over bed : 660 mm
  • Swing over cross slide : 440 mm
  • Width of bed : 400 mm
  • Distance between center : 2000 mm
  • Cutting tool max section : 25 x 25 mm
  • Taper of spindle : MT#5
  • Diameter of spindle bore : 105 mm
  • Range of spindle speeds : 25 - 1600 rpm
  • Metric pitch threads : 0.45 - 120 mm
  • Thread imperial pitches : 7/16 - 80 TPI
  • Pitch threads of leadscrew : 12 mm/2 TPI
  • Travel of tailstock quill : 235
  • Taper hole of tailstock quill : MT#5
  • Main motor power : 7.5 kW
  • The spesification are subject to modification and improvement without notice

Technical Spec

  • Netto Weight 3345.000 KG
  • Unit Dimension 371X123X160CM
  • Height Dimension 184.000
  • Length Dimension 374.000
  • Width Dimension 125.000
  • Type MANUAL LATHE
  • Dimension uom 374.000
Rp 418.679.000
(exc. PPN)
Rp 464.733.690
(inc. PPN)
Lead time diperlukan 30 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
