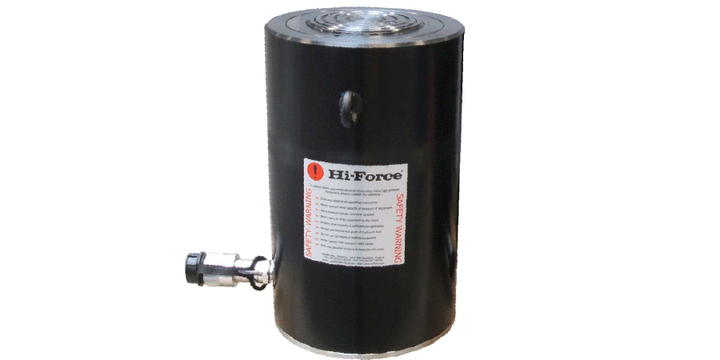

Hi-Force Aluminium Cylinder 110TON HAS1006
Aluminium Cylinder 110TON HAS1006
Features
- Spring assisted return
- Hard anodised piston rod and cylinder
- Steel base plate to protect cylinder body
- Low friction bearing surfaces
- Optional piston rod saddles
Specifications
- Model : HAS1006
- Capacity : 110 T
- Stroke : 152mm
- Oil cap. : 2340 cm3
- Cyl. eff. area : 153.9cm2
- Weight : 23.0 Kg
Technical Spec
- Netto Weight 23.000 KG
- Unit Dimension 27 X 20 X 31.7 CM
- Height Dimension 31.700
- Length Dimension 27.000
- Width Dimension 20.000
- Type Aluminium Cylinder
- Lead Time 60
- Dimension uom 27.000
