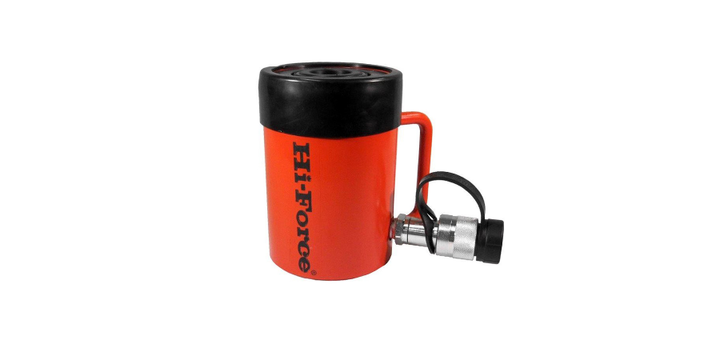

Hi-Force Hollow Piston Cylinder 33TON HHS302
Hollow Piston Cylinder 33TON HHS302
Features
- Spring assisted return
- Surface treated piston rod
- Low friction bearing surfaces
- Anti-extrusion seals
- Optional pist on rod saddles
Specifications
- Model :HHS302
- Capacity : 33 T
- Stroke : 50 mm
- Oil c ap. : 233 cm3
- Cyl. eff. area : 46.7 cm2
- Weight : 10.6Kg
Technical Spec
- Netto Weight 10.600 KG
- Unit Dimension 18 X 12 X 16.5 CM
- Height Dimension 16.500
- Length Dimension 18.000
- Width Dimension 12.000
- Type Hollow Piston
- Lead Time 60
- Dimension uom 18.000
