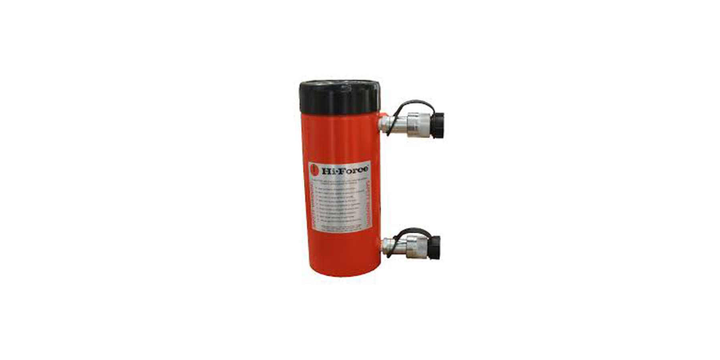

Hi-Force Hollow Piston Cylinder 61TON HHR6010
Hollow Piston Cylinder 61TON HHR6010
Features
- Double acting design
- Surface treated piston rod
- Annular ar ea overload protection valve
- Low friction bearing surfaces
- Anti-extrusion seals
- Optional piston rod saddles
Specifications
- Model : HHR6010
- Push/Pull Cap. : 61/38 T
- Stroke : 254mm
- Oil cap. : 2179 cm3
- Cyl. eff. area : 85.7cm2
- Weight : 52.5 Kg
Technical Spec
- Netto Weight 52.500 KG
- Unit Dimension 23.8 X 16 X 42 CM
- Height Dimension 42.000
- Length Dimension 23.800
- Width Dimension 16.000
- Type Hollow Piston
- Lead Time 60
- Dimension uom 23.800
