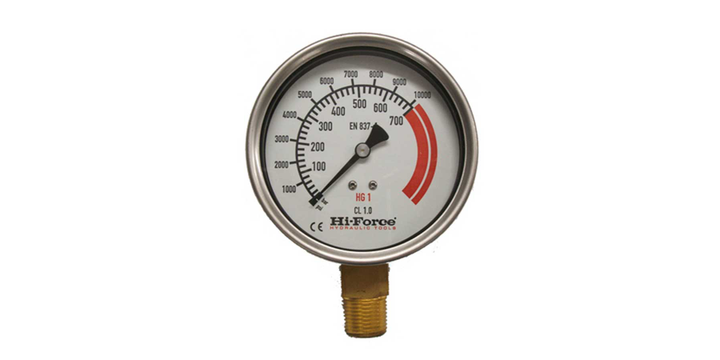

Hi-Force hydraulic pressure gauges are your window to the system and are recommended for use within all hydraulic systems to allow the user to constantly monitor the system pressure.
Hi-Force hydrauli c pressure gauges are manufactured to EN837-1 and are accurate to +/- 1 prosen of full scale.
Standard range models up to 109 tonnes are featured in this catalogue, however gauges to suit Hi-Force high tonnag e cylinders & digital pressure gauges are available on request.
Always specify Hi-Force gauges for use with your Hi-Force hydraulic tools.
Specifications
Model : HG25
Gauge Dia. : 100 mm
Gauge typ. : Dry
Reading Inner : 0-700 bar
Reading Outer : 0-25 Tonnes
Inlet Thread : 1/2 Inch-14NPT
Compatibility Hi-For ce Cylinder : 25T Models
Weight : 0.9 Kg
Technical Specifications
Netto Weight : 0.9 KG
Unit Demension : 63 X 63 X 30 CM
Height Demension : 30 CM
Length Demension : 63 CM
Width Demension : 63 CM
Type : Pressure Gauges
Dimension uom : 63 CM
Rp 3.822.826
(exc. PPN)
Rp 4.243.337
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
