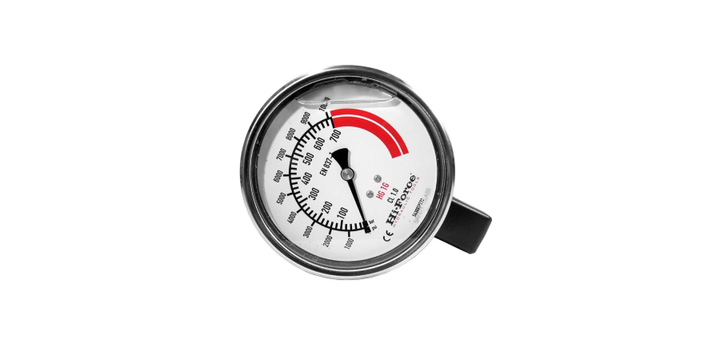

Hi-Force Pressure Gauge Glycerine 100MM HG1G
Pressure Gauge Glycerine 100MM HG1G
Features:
- Hi-Force hydraulic pressure gauges are your window to the system and are recommended for use within all hydraulic systems to allow the user to constantly monitor the system pressure.
- Hi-Force hydrauli c pressure gauges are manufactured to EN837-1 and are accurate to +/- 1 prosen of full scale.
- Standard range models up to 109 tonnes are featured in this catalogue, however gauges to suit Hi-Force high tonnag e cylinders &
- digital pressure gauges are available on request.
- Always specify Hi-Force gauges for use with your Hi-Force hydraulic tools.
Specifications
- Model : HG1G
- Gauge Dia. : 100mm
- Gauge typ. : Glycerine
- Reading Inner : 0-700 bar
- Reading Outer : 0-10.000 Psi
- Inlet Thread : 1/2 inch-14NPT
- Compatibility Hi-Force Cylinder : All Models
- Weight : 1 Kg
Technical Spec:
- Netto Weight 0.900 KG
- Unit Demension 63 X 63 X 30 CM
- Height Demension 30.000
- Length Demension 63.000
- Width Demension 63.000
- Type Pressure Gauges
- Lead Time 60
- Dimension uom 63.000
