Maha Emission Tester Diesel Met 6.2 Vp 135036
Maha Emission Tester Diesel Met 6.2 Vp 135036
Merek:
MAHA
Model:
135036
Deskripsi Produk

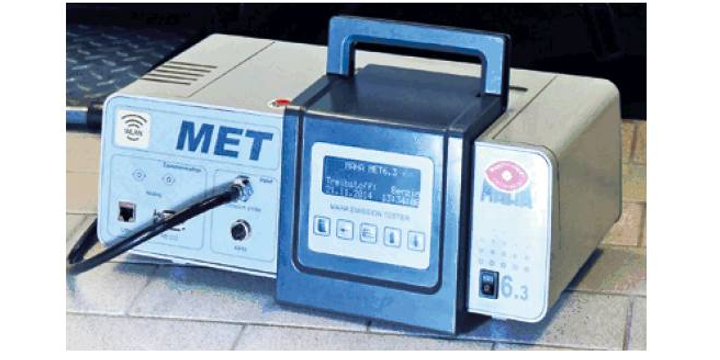

MAHA Emission Tester Diesel Met 6.2 Vp 135036

Emission Tester Diesel Met 6.2 Vp 135036

Features

  • Official German PTB-approval 18.09
  • Partial flow diesel emission tester with display (basic unit) for the measurement of the opacity/particle concentration
  • Time-saving, user-friendly emissio n testing with free acceleration or engine under load
  • Instantaneou s or continuous measurement
  • LAN interface (RJ 45)
  • Innovativ e condensate separation
  • Options: W-LAN interface, RS 232 interf ace, Expandable for NOx analysis (on request)

Specifications

  • Turbidity testing range 0 up to : 100 %
  • Weight : 4.6 kg
  • Warm-up time of the measurement chamber : approx. 150 s
  • Dimensio ns Product width : 225 mm
  • Dimensions Product height : 160 mm
  • Dimensions Product length : 406 mm
  • On-board voltage : 10 - 30 V, DC
  • Power supply On-board voltage : -32 V DC
  • Mains freq uency min. : 50 Hz
  • Mains frequency max. : 60 Hz
  • Mains volt age min. : 110 V
  • Mains voltage max. : 230 V
  • Measuring range particle concentration : 1-1100 mg/m3
  • Resolution of particle co ncentration : 1 mg/m3
  • Measuring range absorption coefficient : 0-9 ,99 m-1

Technical Spec

  • Netto Weight 50.000 KG
  • Unit Dimension (LXWXH)(1X1X1) METER
  • Height Dimension 100.000
  • Length Dimension 100.000
  • Width Dimension 100.000
  • Type Smoke Meter
  • Lead Time 60
  • Dimension uom 100.000
Rp 559.888.000
(exc. PPN)
Rp 621.475.680
(inc. PPN)
Lead time diperlukan 90 hari kerja.
