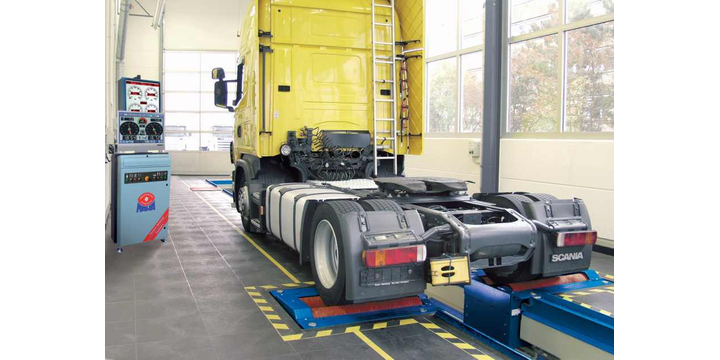

MAHA Roller Brake Tester Truck Mbt 7250

ROLLER BRAKE TESTER TRUCK MBT 7250

Benefits

• Intuitive-to-use EUROSYSTEM software for the highest
• expert standards with:
• Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors
• Integrated user guidance with easy-to-understand user instructions
• Continuous and graphic real-time display of all t he measured values using the reference values time and force.
• EUROSYSTEM supplied as standard with integrated SQL Server Express database
• Multi-user capability option for productive allocation of the individual work packages to several workstations.
• Easy to connect additional devices such as MLT 3000 to EUROSYSTEM
• Configurable test report with all the measurement an d evaluation results of the tests performed on a single print-out
• Robust and long-lasting design due to:
• Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
• Roller surface welded
• Optional, free plastic coating on the test rollers
• 32-bit microprocessor electronics for process control and monitoring of all the safety functions
• Lockable main switch
• RS 232 interface connection
• Splash-proof motors work reliably, even under hi gh-stress environmental influences
• Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
• Inter nationally recognized TÜV certificate as per issue 9/2011 of the Compre ssibility [German Transport Gazette]
• Star-delta circuit to avoid hi gh inrush currents
• RS 2 roller set design with space-saving moto r integration underneath the test rollers
• DESCRIPTION:

Features

• Roller-Brake-Tester up to 18000 kg axle load
• Perfectly suited to lorry diagnostics, even with a very high vehicle throughput
• With the optionally available, integrated roller set lift:
• For load simulation
• For redistribution on an axle to be tested
• No foundation modifications saves a substantial amount of structural effort
• Service and installation-friendly design with maintenance flap
• Large sensing roller with a diameter of 100 mm guarantees measurable coverage across all tyre dimensions
• Visualization of measured values, difference and graphics on monitor display
• Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / T PS EURO floor units
• Comprehensive package of functions for profess ional testing such as:
• Delayed automatic switch-on after entering the tester
• Automatic start-up monitoring supplied as standard to av oid tyre damage
• Automatic slip cut-off with pointer stop and automa tic restart already included as standard
• Automatic exiting aid su pplied as standard to enable the driven axles to conveniently exit the tester
• Automatic cut-off after exiting the tester
• Single -wheel switching for differentiated consideration of each wheel

Specifications

• Axle load (can be driven over) 18000 kg
• Test speed 3 km/h
• Roller length 1150 mm
• Roller diameter 265 mm
• Roller axle distance 475 mm
• Motor power 2 x 11 kW
• Fuse gG 63 A
• Power supply 3/N/PE 400 V 50 Hz

Technical Spec

• Netto Weight 1000.000 KG
• Height Dimension 40.000
• Length Dimension 150.000
• Width Dimension 50.000
• Type Test lane
• Lead Time 90
• Dimension uom 150.000
