Natural granite is free from deterioration or dimensional changeover time.

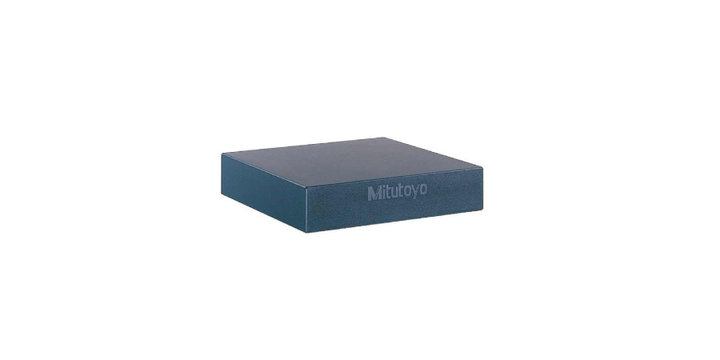

Granite surface plates have significant advanta ges overcast iron surface plates: Twice as hard as cast iron. Non-magnetic. Lowthermal expansion.
Free from wringing, so th ere is no interruptionof work.
Free from burrs or protrusions bec ause of the fine grainstructure and insignificant stickiness; this ensures a high degreeof flatness over a long service life and causes no damage to workpiecesor instruments.
Use these plates in a stabletemperature environment. Since flatness error occur s when there isa temperature difference between the working surface and the underside,avoid working in direct sunlight. Also, do n ot place a plate in thevicinity of an air conditioner, etc. (Re commended environment:Temperature 20±1°C, Humidity 58±2%)
Features
Free from deterioration.
Non-magnetic
Free fromwringing
Free from burrs
Specifications
Flatness : 0.02MM
Technical Spec
Netto Weight : 2700.000 KG
Unit Demension : 2000 X 1500 X 300 MM
Height Demension : 46.500
Length Demension : 211.000
Width Demension : 158.000
Type : Standard
Dimension uom : 211.000
Rp 331.230.000
(exc. PPN)
Rp 367.665.300
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
