Mitutoyo Gauge Block Steel Set (112) 0 516-438-10
Mitutoyo Gauge Block Steel Set (112) 0 516-438-10
| Merek: | MITUTOYO |
| Model: | 516-438-10 |
Deskripsi Produk

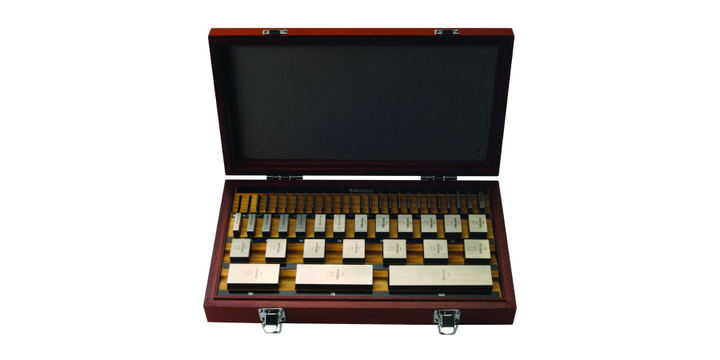

MITUTOYO Gauge Block Steel Set (112) 0 516-438-10
Gauge Block Steel Set (112) 0 516-438-10
Benefits
Precision ground and lapped to a specific thickness.
Features
- Advanced heat treatment technology for Mitutoyo steel blocks achieves excelent abrasion resistance and minimizes any change in length over time.
- Enable user to achive optimum flatness and surface finish needed for gauge block and thus maximize the wringing force.
Specifications
- Hardness: 800 HV
- Flexural strength by 3 point bending: 1960 Mpa
- Young’s Modulus x 10-4 : 20.6 MPa
- Poisson’s ratio: 0.3
- Specific gravity: 7.8
- Thermal conductivity: 54.4 W/m. k
- Content: 1.005, 1.001-1.009 (0.001 step), 1.01-1.49 (0.01 step), 0.5-24.5 (0.5 step), 25-100 (25 step)
Technical Spec
- Netto Weight 6.200 KG
- Unit Dimension 365 X 217 X 65 MM
- Height Dimension 6.500
- Length Dimension 39.500
- Width Dimension 24.800
- Material Steel
- Type Gauge Block Steel
- Dimension uom 39.500
Rp 153.087.000
(exc. PPN)
Rp 169.926.570
(inc. PPN)
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 153.087.000 |
Kuantitas:
EA
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
