Mitutoyo Gauge Block Steel Set (49) 2 516-912-11
Mitutoyo Gauge Block Steel Set (49) 2 516-912-11
Merek: | MITUTOYO |
Model: | 2 516-912-11 |
Deskripsi Produk

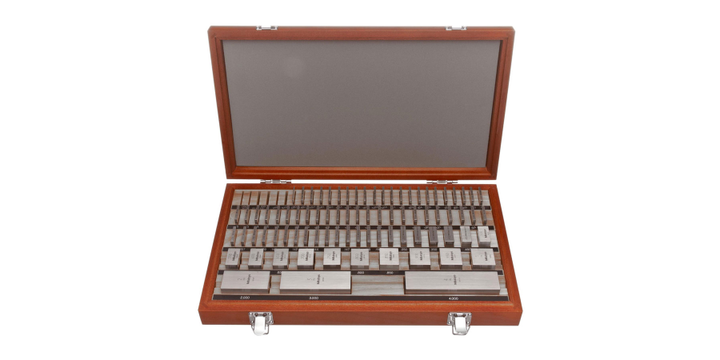

MITUTOYO Gauge Block Steel Set (49) 2 516-912-11
Benefits
- Precision ground and lapped to a specific thickness.
Features
- Advanced heat treatment technology for Mitutoyo steel blocks achieves excelent abrasion resistance and minimizes any change in length over time.
- Enable user to achive optimum flatness and surface finish needed for gauge block and thus maximize the wringing force.
Specifications
- Hardness: 800 HV
- Flexural strength by 3 point bending: 1960 Mpa
- Young’s Modulus x 10-4 : 20.6 MPa
- Poisson’s ratio: 0.3
- Specific gravity: 7.8
- Thermal conductivity: 54.4 W/m. k
- Content: 0.1001-0.1009 (0.0001 step), 0.101-0.109 (0.001 step), 0.01-0.19 (0.01 step), 0.2-0.9 (0.1 step), 1-4 (1 step)
Technical Spec
- Netto Weight: 2.300 KG
- Unit Demension: 30 X 14.5 X 5 CM
- Height Demension: 6.500
- Length Demension: 31.800
- Width Demension: 16.300
- Material: Steel
- Type: Gauge Block Steel
- Dimension uom: 31.800
Rp 23.240.763
(exc. PPN)
Rp 25.797.247
(inc. PPN)
Lead time diperlukan 90 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
