Benefits
Features

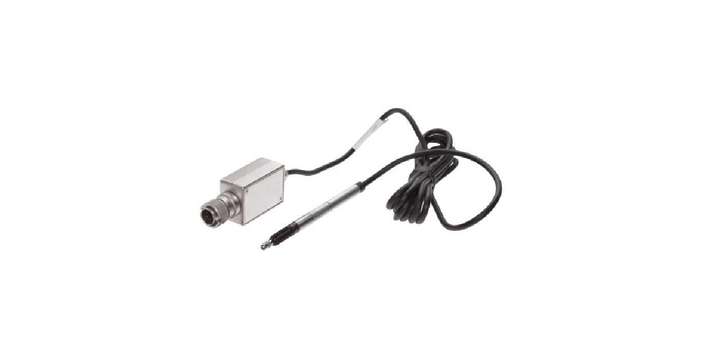

· Extremely compact design. Available with an outside diameter as small as 8mm.
· The small photoelectric linear encoder assures high precision over the entire stroke range
· The ball bearings used in the spindle unit ensure superb durability
Specifications
· Measuring Range: 10mm (4 inch)
· Resolution: 1um
· Measuring Accuracy (20oC): 1um
· Quantizing error: +/-1 count
· Measuring Force:Contact point upwards: Approx. 0.7N or Less
· Measuring Force: Contact Point horizontal: Approx. 0.75N or Less
· Measuring Force: Contact Point downwards: Approx. 0.8N or Less
