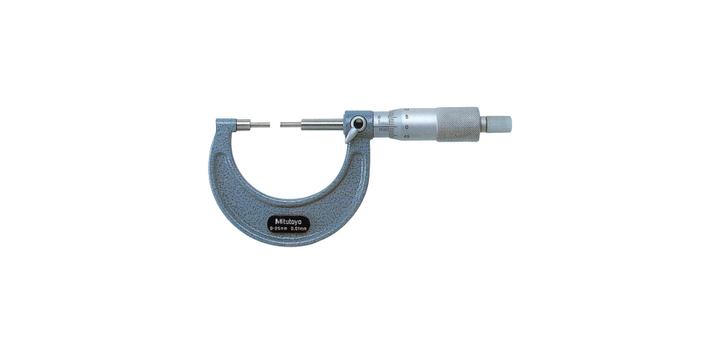

MITUTOYO Spline Micrometer 25/0.01MM 111-115
Spline Micrometer 25/0.01MM 111-115
Features
- Small-diameter anvil and spindle for measuring splined shafts,slots, and keyways
- Vernier scale in metric units for taking precise outside diameter (OD) measurements
- Ratchet-stop mechanism helpsprovide uniform pressure for precise, repeatable measurements Baked enamel finish for protection and durability of frame
- Carbidefacing on spindle and anvil provides wear resistance
Specifications
- Gradient Spacing 0.01 mm
- Maximum Measurement 0-25mm
- Measurement Accuracy +/-0.003mm
- Number of Items 1 Part Number111-115
- Range 0-25mm
- Resolution 0.01mm
- Size Name0-25mm
- Special Features 10mm Tip
- Style Name 10mm Tip
Technical Spec
- Netto Weight 0.205 KG
- Unit Dimension 8 X 6.5 X 2.5 CM
- Height Dimension 2.800
- Length Dimension 16.600
- Width Dimension 8.200
- Material Carbide
- Type Spline Micrometer
- Lead Time 100
- Dimension uom 16.600
