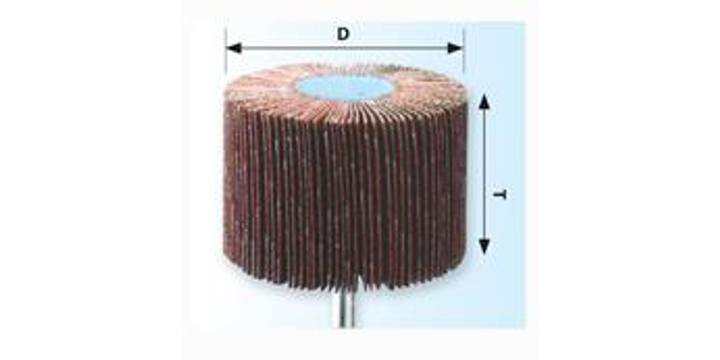

PFERD Fan Grinder GRIT240 F4020/6A 154663
FAN GRINDER GRIT240 F4020/6A 154663
Benefits
- High flexibility.
- High stock removal due to aggressive coated abrasive.
- Flaps wear off uniformly and without residue on the workpiece surface, ensuring adequate availability of sharp grit at all times.
- Due to the special cast core construction, the face of th e tool can be worked up very close to the edges and corners.
Features
- Fan grinders perform best at the recommended cutting speed of 15-20 m/s, where the optimum balance between stock removal, surface finishing quality, workpiece temperature loads and tool wear is achieved.
- Suitable drive systems include flexible shafts and electric or air-powered straight grinders.
Specifications
- Grit size: 240
- S x L: 6 x 40 mm
- Recom. Speed: 9600 Rpm
- Max speed: 19100 rpm
Technical Spec
- Netto Weight 0.360 KG
- Unit Dimension 60 X 40 X 40 MM
- Height Dimension 40.000
- Length Dimension 60.000
- Width Dimension 40.000
- Type Fan Grinder
- Lead Time 23
- Dimension uom 60.000
