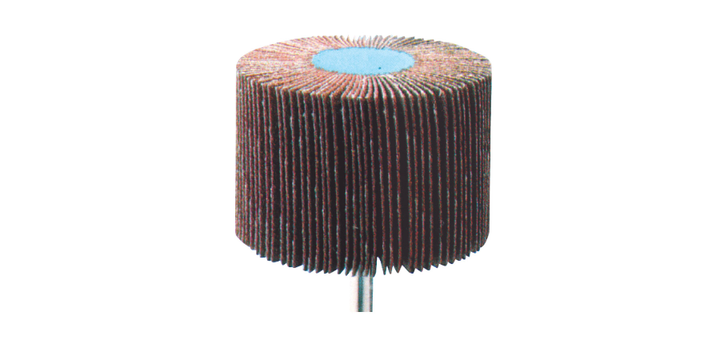

PFERD Fan Grinder GRIT80 F3015/6A 154694
FAN GRINDER GRIT80 F3015/6A 154694
Benefits
- High flexibility.
- High stock removal due to aggressive coated abrasive.
- Flaps wear off uniformly and without residue on the workpiece surface, ensuring adequate availability of sharp grit at all times.
- Due to the special cast core construction, the face of th e tool can be worked up very close to the edges and corners.
Features
- Fan grinders perform best at the recommended cutting speed of 15-20 m/s, where the optimum balance between stock removal, surface finishing quality, workpiece temperature loads and tool wear is achieved.
- Suitable drive systems include flexible shafts and electric or air-powered straight grinders.
Specifications
- Grit size: 80
- S x L: 6 x 40 mm
- Recom. Speed: 12000 Rpm
- Max speed: 25400 rpm
Technical Spec
- Netto Weight 0.250 KG
- Unit Dimension 55 X 30 X 30 MM
- Height Dimension 30.000
- Length Dimension 55.000
- Width Dimension 30.000
- Type Fan Grinder
- Dimension uom 55.000
