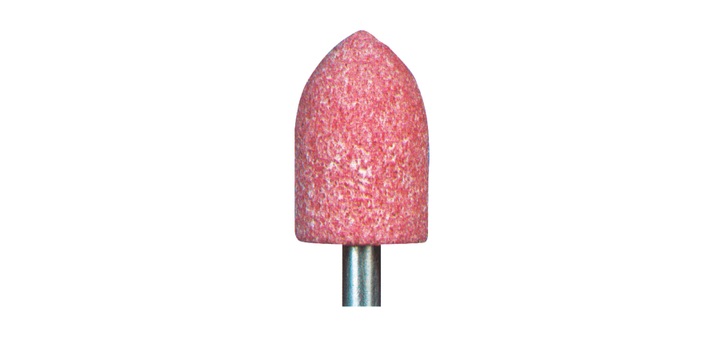

Pferd Mounted Point SP0816/3 AR80O5V 102091

MOUNTED POINT SP0816/3 AR80O5V 102091

Benefits

• These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
• Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.

Features

• Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
• Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
• The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
• Application examples :
• Deburring of steel castings.
• Chamfering in preparation for welding.
• Contour a nd edge grinding on forgings.

Specifications

• Grit size : 80
• Shank diameter : 3 mm
• Shank length : 30 mm
• Burrs Diameter : 5 mm
• Burrs Thickness : 10 mm
• Max. Speed : 149.500 Rpm

Technical Spec

• Netto Weight 0.004 KG
• Unit Dimension 46 X 8 X 8 MM
• Height Dimension 0.600
• Length Dimension 4.500
• Width Dimension 0.600
• Type Tree
• Lead Time 30
• Dimension uom 4.500
