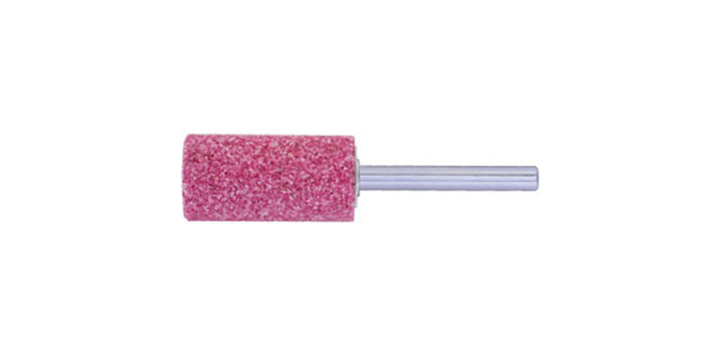

Pferd Mounted Point ZY2532/6 ADR30O5VNA 802960
MOUNTED POINT ZY2525/6 AR60O5V 097359
Benefits
- These mounted points are dimensionally stable due to their hard bond, which characterises their long tool life and low tool wear.
- Due to their special edge stability, hardness grade O mounted points ca n also be used cost effectively with low RPM tool drives.
Features
- Mounted points in hardness grade O consist of pink aluminium oxide in a vitrified bond.
- Mounted points with a very high tool life and good stock removal rates are produced from this combination of wear-resistant grit and the hard bond.
- The hardness grade O is particularly suited for use on edges and for deburring work on steel components.
- Application examples :
- Deburring of steel castings.
- Chamfering in preparation for welding.
- Contour a nd edge grinding on forgings.
Specifications
- Grit size : 60
- Shank diameter : 6 mm
- Shank length : 40 mm
- Burrs Diameter : 25 mm
- Burrs Thickness : 25 mm
- Max. Speed : 38.100 Rpm
Technical Spec
- Netto Weight 0.048 KG
- Unit Dimension 65 X 25 X 25 MM
- Height Dimension 25.000
- Length Dimension 65.000
- Width Dimension 25.000
- Type Cylindrical
- Lead Time 43
- Dimension uom 65.000
