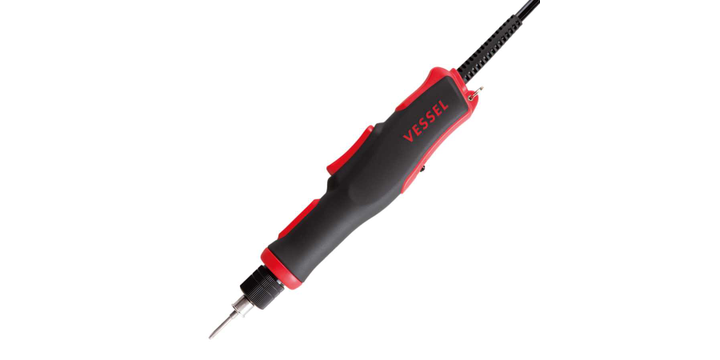

Vessel Screwdriver VE-3000 0.15-1.0 Nm 550003
Screwdriver VE-3000 0.15-1.0 Nm 550003
Benefits
- Slot less/brush less motor is used. Tightening accuracy, efficiency and maintainability are improved.
- Easy to use ergonomic design. Shock absorbing gel pad enables a firm grip.
- Prevents mis operation of adjustment by a tamper proof sleeve.
- Power cable 2 M integrated type without a connector on the main body.
Features
- Torque adjustment 16 step x 8 scales
- Body material PC + elastomer
Specifications
- Model: VE-3000
- Insertion angle: F4
- Output torque range: 0.15-1.0 Nm
- Applicable small screw: 1.6-3.0 M
- Applicable self-tapping screw: 1.6-2.6 MM
- No-load rotation speedmin-1: HI 1000/LO 700
- Rating: DC32 V 25 W
- Cable length: 2 M
- Overall Length: 222 MM
- EDP No.: 550003
Technical Spec
- Netto Weight 0.700 KG
- Unit Dimension 30 X 20 X 10 CM
- Height Dimension 10.000
- Length Dimension 32.000
- Width Dimension 15.000
- Type SCREWDRIVER
- Lead Time 30
- Dimension uom 32.000
